光颉viking功率扼流圈功率电感器（SDB系列）需要同时考虑连续工作功率、脉冲能量、寄生参数与散热条件，不能只比较额定瓦数。
0420 / 0520 / 0530 / 0620 / 0625 / 0630 / 1040 / 1340 / 1350 / 1365
屏蔽成型 SMD 功率电感器 - SDB 系列 文件下载
SMD大功率扼流圈，大电流适应扁线线圈，大电流温升低，低DCR薄型。
特征
-
大电流适应性强。
-
占地面积与大多数标准兼容。
-
大电流下温升较低。
-
低调，低 DCR。
-
可用于自动表面安装的磁带和卷轴。
应用
-
笔记本电脑/台式机/笔记本电脑。
-
终端/便携式服务器/工作站。
-
分布式电源系统或 VRM 应用中的 DC/DC 转换器。
-
交换器用薄型板载电源模块。
电感和额定电流范围
- SDB0420：0.10μH〜3.3μH，@Saturation电流：22〜4A
- SDB0520：0.10μH〜4.7μH，@Saturation电流：45〜5A
- SDB0530：0.10μH〜4.7μH，@Saturation电流：27〜8.2A
- SDB0620：0.10μH ~ 4.7μH，@饱和电流：40 ~ 8A
- SDB0625：0.10μH ~ 10μH，@饱和电流：50 ~ 7A
- SDB0630：0.10μH ~ 10μH，@
60DB0506μH506 ~ 10μH, @饱和电流: 12 ~ 4.5A
- SDB1040: 0.19μH ~ 10μH, @饱和电流: 90 ~ 12A
- SDB1340: 0.10μH ~ 10μH, @饱和电流: 84 ~
1310~1μH, @10μH饱和电流：118 ~ 16A
- SDB1365：0.10μH ~ 10μH，@饱和电流：120 ~ 15.5A
- 测试设备：
• L：HP4284A LCR 表
• DCR：毫欧表
- 25°C 时的电气规格
- 工作温度范围：-40°C ~ +125°C
特征
- 饱和额定电流会导致电感下降大约 25%（0402 下降大约 30%）
- 温升电流会导致大约 40°C 的 ΔT
- 所有测试数据均参考 25°C 环境温度

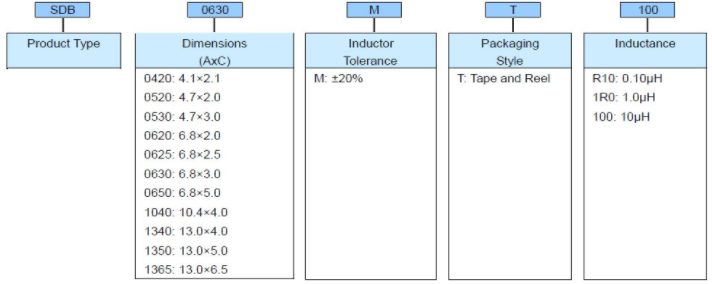

产品标识
标准电气规格
SDB0420 Type(□:Tolerance) (电气特性)
| Part No. | Inductance (μH) | Tolerance | Test Condition | DCR (mΩ) Max. | Saturation Current (A) Max. | Temperature Rise Current (A) Max. |
|---|---|---|---|---|---|---|
| SDB0420□TR10 | 0.10 | M | 100KHz, 0.25V | 4.0 | 22.0 | 12.0 |
| SDB0420□TR22 | 0.22 | M | 100KHz, 0.25V | 6.6 | 12.5 | 9.0 |
| SDB0420□TR47 | 0.47 | M | 100KHz, 0.25V | 14 | 9.5 | 7.0 |
| SDB0420□TR56 | 0.56 | M | 100KHz, 0.25V | 16 | 8.5 | 6.5 |
| SDB0420□T1R0 | 1.0 | M | 100KHz, 0.25V | 27 | 7.0 | 4.5 |
| SDB0420□T1R5 | 1.5 | M | 100KHz, 0.25V | 46 | 6.0 | 4.0 |
| SDB0420□T2R2 | 2.2 | M | 100KHz, 0.25V | 58 | 5.0 | 3.0 |
| SDB0420□T3R3 | 3.3 | M | 100KHz, 0.25V | 87 | 4.0 | 2.5 |
SDB0520 Type(□:Tolerance) (Electrical Characteristics)
| Part No. | Inductance (μH) | Tolerance | Test Condition | DCR (mΩ) Max. | Saturation Current (A) Max. | Temperature Rise Current (A) Max. |
|---|---|---|---|---|---|---|
| SDB0520□TR10 | 0.10 | M | 100KHz, 0.25V | 3.9 | 45.0 | 17.0 |
| SDB0520□TR22 | 0.22 | M | 100KHz, 0.25V | 5.2 | 22.0 | 15.0 |
| SDB0520□TR33 | 0.33 | M | 100KHz, 0.25V | 8.2 | 25.0 | 12.0 |
| SDB0520□TR47 | 0.47 | M | 100KHz, 0.25V | 9.4 | 21.0 | 11.5 |
| SDB0520□TR68 | 0.68 | M | 100KHz, 0.25V | 12.4 | 15.0 | 10.0 |
| SDB0520□T1R0 | 1.0 | M | 100KHz, 0.25V | 20.0 | 16.0 | 7.0 |
| SDB0520□T2R2 | 2.2 | M | 100KHz, 0.25V | 50.1 | 9.5 | 4.2 |
| SDB0520□T3R3 | 3.3 | M | 100KHz, 0.25V | 85.5 | 8.5 | 3.3 |
| SDB0520□T4R7 | 4.7 | M | 100KHz, 0.25V | 116.6 | 5.0 | 2.8 |
SDB0530 Type(□:Tolerance) (Electrical Characteristics)
| Part No. | Inductance (μH) | Tolerance | Test Condition | DCR (mΩ) Max. | Saturation Current (A) Max. | Temperature Rise Current (A) Max. |
|---|---|---|---|---|---|---|
| SDB0530□TR10 | 0.10 | M | 100KHz, 0.25V | 3.16 | 27.0 | 23.0 |
| SDB0530□TR22 | 0.22 | M | 100KHz, 0.25V | 4.52 | 21.0 | 15.5 |
| SDB0530□TR33 | 0.33 | M | 100KHz, 0.25V | 5.56 | 19.0 | 13.7 |
| SDB0530□TR47 | 0.47 | M | 100KHz, 0.25V | 7.04 | 16.0 | 12.2 |
| SDB0530□TR68 | 0.68 | M | 100KHz, 0.25V | 8.96 | 13.5 | 10.2 |
| SDB0530□TR82 | 0.82 | M | 100KHz, 0.25V | 11.9 | 13.0 | 9.3 |
| SDB0530□T1R0 | 1.0 | M | 100KHz, 0.25V | 13.7 | 12.0 | 9.2 |
| SDB0530□T1R5 | 1.5 | M | 100KHz, 0.25V | 20.7 | 11.0 | 7.2 |
| SDB0530□T2R2 | 2.2 | M | 100KHz, 0.25V | 29.2 | 10.0 | 5.8 |
| SDB0530□T3R3 | 3.3 | M | 100KHz, 0.25V | 54.7 | 8.5 | 5.0 |
| SDB0530□T4R7 | 4.7 | M | 100KHz, 0.25V | 77.5 | 8.2 | 3.5 |
SDB0620 Type(□:Tolerance) (Electrical Characteristics)
| Part No. | Inductance (μH) | Tolerance | Test Condition | DCR (mΩ) Max. | Saturation Current (A) Max. | Temperature Rise Current (A) Max. |
|---|---|---|---|---|---|---|
| SDB0620□TR10 | 0.10 | M | 100KHz, 0.25V | 3.5 | 40.00 | 18.00 |
| SDB0620□TR15 | 0.15 | M | 100KHz, 0.25V | 5.2 | 38.00 | 15.00 |
| SDB0620□TR22 | 0.22 | M | 100KHz, 0.25V | 5.7 | 26.00 | 14.00 |
| SDB0620□TR33 | 0.33 | M | 100KHz, 0.25V | 7.0 | 18.00 | 12.00 |
| SDB0620□TR47 | 0.47 | M | 100KHz, 0.25V | 9.3 | 18.00 | 11.00 |
| SDB0620□TR68 | 0.68 | M | 100KHz, 0.25V | 13.9 | 17.00 | 9.00 |
| SDB0620□TR82 | 0.82 | M | 100KHz, 0.25V | 15.9 | 17.00 | 8.00 |
| SDB0620□T1R0 | 1.0 | M | 100KHz, 0.25V | 18.3 | 14.00 | 7.00 |
| SDB0620□T1R5 | 1.5 | M | 100KHz, 0.25V | 34.0 | 13.00 | 4.00 |
| SDB0620□T2R2 | 2.2 | M | 100KHz, 0.25V | 46.0 | 11.50 | 3.75 |
| SDB0620□T3R3 | 3.3 | M | 100KHz, 0.25V | 60.1 | 10.00 | 3.25 |
| SDB0620□T4R7 | 4.7 | M | 100KHz, 0.25V | 78.0 | 8.00 | 3.00 |
SDB0625 Type(□:Tolerance) (Electrical Characteristics)
| Part No. | Inductance (μH) | Tolerance | Test Condition | DCR (mΩ) Max. | Saturation Current (A) Max. | Temperature Rise Current (A) Max. |
|---|---|---|---|---|---|---|
| SDB0625□TR10 | 0.10 | M | 100KHz, 0.25V | 1.7 | 50.0 | 30.0 |
| SDB0625□TR22 | 0.22 | M | 100KHz, 0.25V | 3.2 | 34.0 | 21.0 |
| SDB0625□TR33 | 0.33 | M | 100KHz, 0.25V | 4.1 | 22.0 | 18.0 |
| SDB0625□TR47 | 0.47 | M | 100KHz, 0.25V | 6.5 | 21.0 | 13.5 |
| SDB0625□TR68 | 0.68 | M | 100KHz, 0.25V | 9.4 | 18.0 | 11.0 |
| SDB0625□TR82 | 0.82 | M | 100KHz, 0.25V | 11.8 | 17.0 | 10.0 |
| SDB0625□T1R0 | 1.0 | M | 100KHz, 0.25V | 14.2 | 16.0 | 9.0 |
| SDB0625□T1R5 | 1.5 | M | 100KHz, 0.25V | 21.2 | 15.0 | 7.5 |
| SDB0625□T2R2 | 2.2 | M | 100KHz, 0.25V | 34.0 | 14.0 | 6.5 |
| SDB0625□T3R3 | 3.3 | M | 100KHz, 0.25V | 51.6 | 13.0 | 5.0 |
| SDB0625□T4R7 | 4.7 | M | 100KHz, 0.25V | 63.0 | 10.0 | 4.5 |
| SDB0625□T6R8 | 6.8 | M | 100KHz, 0.25V | 95.0 | 9.0 | 3.5 |
| SDB0625□T8R2 | 8.2 | M | 100KHz, 0.25V | 106.0 | 8.0 | 3.0 |
| SDB0625□T100 | 10 | M | 100KHz, 0.25V | 129.0 | 7.0 | 2.5 |
SDB0625 Type(□:Tolerance) (Electrical Characteristics)
| Part No. | Inductance (μH) | Tolerance | Test Condition | DCR (mΩ) Max. | Saturation Current (A) Max. | Temperature Rise Current (A) Max. |
|---|---|---|---|---|---|---|
| SDB0625□TR10 | 0.10 | M | 100KHz, 0.25V | 1.7 | 50.0 | 30.0 |
| SDB0625□TR22 | 0.22 | M | 100KHz, 0.25V | 3.2 | 34.0 | 21.0 |
| SDB0625□TR33 | 0.33 | M | 100KHz, 0.25V | 4.1 | 22.0 | 18.0 |
| SDB0625□TR47 | 0.47 | M | 100KHz, 0.25V | 6.5 | 21.0 | 13.5 |
| SDB0625□TR68 | 0.68 | M | 100KHz, 0.25V | 9.4 | 18.0 | 11.0 |
| SDB0625□TR82 | 0.82 | M | 100KHz, 0.25V | 11.8 | 17.0 | 10.0 |
| SDB0625□T1R0 | 1.0 | M | 100KHz, 0.25V | 14.2 | 16.0 | 9.0 |
| SDB0625□T1R5 | 1.5 | M | 100KHz, 0.25V | 21.2 | 15.0 | 7.5 |
| SDB0625□T2R2 | 2.2 | M | 100KHz, 0.25V | 34.0 | 14.0 | 6.5 |
| SDB0625□T3R3 | 3.3 | M | 100KHz, 0.25V | 51.6 | 13.0 | 5.0 |
| SDB0625□T4R7 | 4.7 | M | 100KHz, 0.25V | 63.0 | 10.0 | 4.5 |
| SDB0625□T6R8 | 6.8 | M | 100KHz, 0.25V | 95.0 | 9.0 | 3.5 |
| SDB0625□T8R2 | 8.2 | M | 100KHz, 0.25V | 106.0 | 8.0 | 3.0 |
| SDB0625□T100 | 10 | M | 100KHz, 0.25V | 129.0 | 7.0 | 2.5 |
SDB0630 Type(□:Tolerance) (Electrical Characteristics)
| Part No. | Inductance (μH) | Tolerance | Test Condition | DCR (mΩ) Max. | Saturation Current (A) Max. | Temperature Rise Current (A) Max. |
|---|---|---|---|---|---|---|
| SDB0630□TR10 | 0.10 | M | 100KHz, 0.25V | 1.7 | 60.0 | 32.5 |
| SDB0630□TR22 | 0.22 | M | 100KHz, 0.25V | 2.8 | 40.0 | 23.0 |
| SDB0630□TR33 | 0.33 | M | 100KHz, 0.25V | 3.9 | 30.0 | 20.0 |
| SDB0630□TR47 | 0.47 | M | 100KHz, 0.25V | 4.2 | 26.0 | 17.5 |
| SDB0630□TR56 | 0.56 | M | 100KHz, 0.25V | 4.5 | 24.5 | 16.5 |
| SDB0630□TR68 | 0.68 | M | 100KHz, 0.25V | 5.5 | 25.0 | 15.5 |
| SDB0630□TR82 | 0.82 | M | 100KHz, 0.25V | 8.0 | 24.0 | 13.0 |
| SDB0630□T1R0 | 1.0 | M | 100KHz, 0.25V | 10.0 | 22.0 | 11.0 |
| SDB0630□T1R5 | 1.5 | M | 100KHz, 0.25V | 15.0 | 18.0 | 9.0 |
| SDB0630□T2R2 | 2.2 | M | 100KHz, 0.25V | 20.0 | 14.0 | 8.0 |
| SDB0630□T3R3 | 3.3 | M | 100KHz, 0.25V | 30.0 | 13.5 | 6.0 |
| SDB0630□T4R7 | 4.7 | M | 100KHz, 0.25V | 40.0 | 10.0 | 5.5 |
| SDB0630□T6R8 | 6.8 | M | 100KHz, 0.25V | 60.0 | 8.0 | 4.5 |
| SDB0630□T8R2 | 8.2 | M | 100KHz, 0.25V | 68.0 | 7.5 | 4.0 |
| SDB0630□T100 | 10 | M | 100KHz, 0.25V | 105.0 | 7.0 | 3.0 |
SDB0650 Type(□:Tolerance) (Electrical Characteristics)
| Part No. | Inductance (μH) | Tolerance | Test Condition | DCR (mΩ) Max. | Saturation Current (A) Max. | Temperature Rise Current (A) Max. |
|---|---|---|---|---|---|---|
| SDB0650□TR56 | 0.56 | M | 100KHz, 0.25V | 3.6 | 12.0 | 20.0 |
| SDB0650□TR68 | 0.68 | M | 100KHz, 0.25V | 4.5 | 11.5 | 18.0 |
| SDB0650□TR82 | 0.82 | M | 100KHz, 0.25V | 4.9 | 13.0 | 16.5 |
| SDB0650□T1R0 | 1.0 | M | 100KHz, 0.25V | 6.5 | 15.0 | 13.0 |
| SDB0650□T1R5 | 1.5 | M | 100KHz, 0.25V | 9.0 | 12.0 | 12.0 |
| SDB0650□T2R2 | 2.2 | M | 100KHz, 0.25V | 13.6 | 10.0 | 10.0 |
| SDB0650□T3R3 | 3.3 | M | 100KHz, 0.25V | 20.9 | 8.0 | 8.0 |
| SDB0650□T4R7 | 4.7 | M | 100KHz, 0.25V | 30.3 | 7.0 | 6.5 |
| SDB0650□T5R6 | 5.6 | M | 100KHz, 0.25V | 34.4 | 7.0 | 6.0 |
| SDB0650□T6R8 | 6.8 | M | 100KHz, 0.25V | 44.6 | 5.5 | 5.5 |
| SDB0650□T8R2 | 8.2 | M | 100KHz, 0.25V | 50.7 | 5.0 | 5.0 |
| SDB0650□T100 | 10 | M | 100KHz, 0.25V | 71.3 | 4.5 | 4.5 |
SDB1040 Type(□:Tolerance) (Electrical Characteristics)
| Part No. | Inductance (μH) | Tolerance | Test Condition | DCR (mΩ) Max. | Saturation Current (A) Max. | Temperature Rise Current (A) Max. |
|---|---|---|---|---|---|---|
| SDB1040□TR19 | 0.19 | M | 100KHz, 0.25V | 0.95 | 90.0 | 40.0 |
| SDB1040□TR22 | 0.22 | M | 100KHz, 0.25V | 0.95 | 90.0 | 40.0 |
| SDB1040□TR36 | 0.36 | M | 100KHz, 0.25V | 1.40 | 60.0 | 31.5 |
| SDB1040□TR47 | 0.47 | M | 100KHz, 0.25V | 1.60 | 38.0 | 26.0 |
| SDB1040□TR56 | 0.56 | M | 100KHz, 0.25V | 1.80 | 49.0 | 27.5 |
| SDB1040□TR68 | 0.68 | M | 100KHz, 0.25V | 2.40 | 42.0 | 23.0 |
| SDB1040□T1R0 | 1.0 | M | 100KHz, 0.25V | 4.10 | 36.0 | 17.5 |
| SDB1040□T1R5 | 1.5 | M | 100KHz, 0.25V | 5.80 | 27.5 | 15.0 |
| SDB1040□T2R2 | 2.2 | M | 100KHz, 0.25V | 9.00 | 25.6 | 12.0 |
| SDB1040□T3R3 | 3.3 | M | 100KHz, 0.25V | 11.80 | 18.6 | 10.0 |
| SDB1040□T4R7 | 4.7 | M | 100KHz, 0.25V | 16.50 | 17.0 | 9.5 |
| SDB1040□T5R6 | 5.6 | M | 100KHz, 0.25V | 19.30 | 16.0 | 8.5 |
| SDB1040□T6R8 | 6.8 | M | 100KHz, 0.25V | 23.30 | 13.5 | 8.0 |
| SDB1040□T100 | 10 | M | 100KHz, 0.25V | 36.50 | 12.0 | 6.8 |
SDB1340 Type(□:Tolerance) (Electrical Characteristics)
<td align="center" "="" style="margin: 0px; padding: 12px 8px; border-color: rgb(228, 228, 228); background-color: transparent; font-size: 0.9em; line-height: 17.28px;">8.5
| Part No. | Inductance (μH) | Tolerance | Test Condition | DCR (mΩ) Max. | Saturation Current (A) Max. | Temperature Rise Current (A) Max. |
|---|---|---|---|---|---|---|
| SDB1340□TR10 | 0.10 | M | 100KHz, 0.25V | 0.96 | 84.0 | 43.0 |
| SDB1340□TR15 | 0.15 | M | 100KHz, 0.25V | 1.20 | 75.0 | 41.0 |
| SDB1340□TR22 | 0.22 | M | 100KHz, 0.25V | 1.30 | 65.0 | 38.5 |
| SDB1340□TR33 | 0.33 | M | 100KHz, 0.25V | 1.50 | 62.0 | 36.5 |
| SDB1340□TR47 | 0.47 | M | 100KHz, 0.25V | 2.00 | 55.0 | 32.0 |
| SDB1340□TR60 | 0.60 | M | 100KHz, 0.25V | 2.20 | 51.0 | 29.0 |
| SDB1340□TR68 | 0.68 | M | 100KHz, 0.25V | 2.50 | 49.0 | 28.0 |
| SDB1340□TR82 | 0.82 | M | 100KHz, 0.25V | 3.00 | 44.0 | 25.0 |
| SDB1340□T1R0 | 1.0 | M | 100KHz, 0.25V | 3.50 | 40.0 | 24.0 |
| SDB1340□T1R5 | 1.5 | M | 100KHz, 0.25V | 5.50 | 35.0 | 19.0 |
| SDB1340□T1R8 | 1.8 | M | 100KHz, 0.25V | 7.00 | 30.0 | 16.5 |
| SDB1340□T2R2 | 2.2 | M | 100KHz, 0.25V | 8.00 | 29.0 | 16.0 |
| SDB1340□T3R3 | 3.3 | M | 100KHz, 0.25V | 12.00 | 27.0 | 12.0 |
| SDB1340□T4R7 | 4.7 | M | 100KHz, 0.25V | 15.00 | 24.0 | 10.0 |
| SDB1340□T5R6 | 5.6 | M | 100KHz, 0.25V | 19.00 | 19.0 | 9.5 |
| SDB1340□T6R8 | 6.8 | M | 100KHz, 0.25V | 22.00 | 18.0 | 9.0 |
| SDB1340□T8R2 | 8.2 | M | 100KHz, 0.25V | 28.00 | 16.0 | |
| SDB1340□T100 | 10 | M | 100KHz, 0.25V | 34.00 | 14.0 | 7.0 |
SDB1350 Type(□:Tolerance) (Electrical Characteristics)
| Part No. | Inductance (μH) | Tolerance | Test Condition | DCR (mΩ) Max. | Saturation Current (A) Max. | Temperature Rise Current (A) Max. |
|---|---|---|---|---|---|---|
| SDB1350□TR10 | 0.10 | M | 100KHz, 0.25V | 0.6 | 118.0 | 55.0 |
| SDB1350□TR22 | 0.22 | M | 100KHz, 0.25V | 0.8 | 110.0 | 51.0 |
| SDB1350□TR33 | 0.33 | M | 100KHz, 0.25V | 1.1 | 80.0 | 42.0 |
| SDB1350□TR47 | 0.47 | M | 100KHz, 0.25V | 1.3 | 65.0 | 38.0 |
| SDB1350□TR56 | 0.56 | M | 100KHz, 0.25V | 1.5 | 55.0 | 36.0 |
| SDB1350□TR68 | 0.68 | M | 100KHz, 0.25V | 1.7 | 54.0 | 34.0 |
| SDB1350□TR82 | 0.82 | M | 100KHz, 0.25V | 2.3 | 53.0 | 31.0 |
| SDB1350□T1R0 | 1.0 | M | 100KHz, 0.25V | 2.5 | 50.0 | 29.0 |
| SDB1350□T1R5 | 1.5 | M | 100KHz, 0.25V | 4.1 | 48.0 | 23.0 |
| SDB1350□T1R8 | 1.8 | M | 100KHz, 0.25V | 4.9 | 40.0 | 19.0 |
| SDB1350□T2R2 | 2.2 | M | 100KHz, 0.25V | 5.5 | 32.0 | 20.0 |
| SDB1350□T3R3 | 3.3 | M | 100KHz, 0.25V | 9.2 | 32.0 | 15.0 |
| SDB1350□T4R7 | 4.7 | M | 100KHz, 0.25V | 15.0 | 27.0 | 12.0 |
| SDB1350□T5R6 | 5.6 | M | 100KHz, 0.25V | 16.5 | 22.0 | 11.5 |
| SDB1350□T6R8 | 6.8 | M | 100KHz, 0.25V | 18.5 | 21.0 | 11.0 |
| SDB1350□T7R8 | 7.8 | M | 100KHz, 0.25V | 20.5 | 18.0 | 10.0 |
| SDB1350□T8R2 | 8.2 | M | 100KHz, 0.25V | 22.5 | 18.0 | 9.5 |
| SDB1350□T100 | 10 | M | 100KHz, 0.25V | 25.5 | 16.0 | 9.0 |
SDB1365 Type(□:Tolerance) (Electrical Characteristics)
| Part No. | Inductance (μH) | Tolerance | Test Condition | DCR (mΩ) Max. | Saturation Current (A) Max. | Temperature Rise Current (A) Max. |
|---|---|---|---|---|---|---|
| SDB1365□TR10 | 0.10 | M | 100KHz, 0.25V | 0.5 | 120.0 | 60.0 |
| SDB1365□TR15 | 0.15 | M | 100KHz, 0.25V | 0.6 | 118.0 | 55.0 |
| SDB1365□TR22 | 0.22 | M | 100KHz, 0.25V | 0.7 | 112.0 | 53.0 |
| SDB1365□TR30 | 0.30 | M | 100KHz, 0.25V | 0.8 | 72.0 | 48.0 |
| SDB1365□TR33 | 0.33 | M | 100KHz, 0.25V | 0.9 | 65.0 | 46.0 |
| SDB1365□TR40 | 0.40 | M | 100KHz, 0.25V | 1.0 | 64.0 | 44.0 |
| SDB1365□TR47 | 0.47 | M | 100KHz, 0.25V | 1.2 | 63.0 | 41.0 |
| SDB1365□TR56 | 0.56 | M | 100KHz, 0.25V | 1.4 | 62.0 | 37.0 |
| SDB1365□TR68 | 0.68 | M | 100KHz, 0.25V | 1.6 | 60.0 | 35.0 |
| SDB1365□TR82 | 0.82 | M | 100KHz, 0.25V | 1.9 | 50.0 | 33.0 |
| SDB1365□T1R0 | 1.0 | M | 100KHz, 0.25V | 2.0 | 49.0 | 32.0 |
| SDB1365□T1R0-1 | 1.0 | M | 100KHz, 1V | 2.0 | 49.0 | 32.0 |
| SDB1365□T1R2 | 1.2 | M | 100KHz, 0.25V | 2.5 | 48.0 | 30.0 |
| SDB1365□T1R5 | 1.5 | M | 100KHz, 0.25V | 3.0 | 45.0 | 27.0 |
| SDB1365□T1R8 | 1.8 | M | 100KHz, 0.25V | 3.2 | 41.0 | 24.0 |
| SDB1365□T2R2 | 2.2 | M | 100KHz, 0.25V | 4.2 | 40.0 | 22.0 |
| SDB1365□T3R3 | 3.3 | M | 100KHz, 0.25V | 6.8 | 35.0 | 18.0 |
| SDB1365□T4R7 | 4.7 | M | 100KHz, 0.25V | 8.7 | 32.0 | 13.5 |
| SDB1365□T5R6 | 5.6 | M | 100KHz, 0.25V | 10.0 | 32.0 | 13.5 |
| SDB1365□T6R8 | 6.8 | M | 100KHz, 0.25V | 14.0 | 16.5 | 11.5 |
| SDB1365□T8R2 | 8.2 | M | 100KHz, 0.25V | 15.5 | 16.0 | 10.5 |
| SDB1365□T100 | 10 | M | 100KHz, 0.25V | 17.2 | 15.5 | 10.0 |
| SDB1365□T100-1 | 10 | M | 100KHz, 1V | 17.2 | 15.5 | 10.0 |
| SDB1365□T220 | 22 | M | 100KHz, 0.25V | 40.0 | 10.0 | 10.0 |
